Hydronics Engineering Hydrant Flow Testing Software

Spreadsheet for single or multiple hydrant flow tests. Unlimited number of flow test locations and outlets flowed. Dynamic Graph responds immediately to changes. Extrapolated flow at 0 psi, 20 psi or any user defined pressure. Report and Graph for each individual flow test. Summary displays all records in the flow test database. Search flow test database for results matching file name, hydrant, location, date, static, residual, flow and other variables. Copy and Paste results to Microsoft Excel.

Hydrant Flow Test 5.0

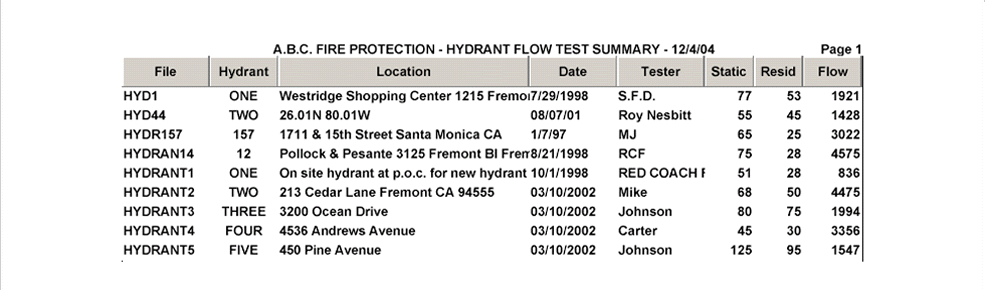

Hydrant Flow Summary

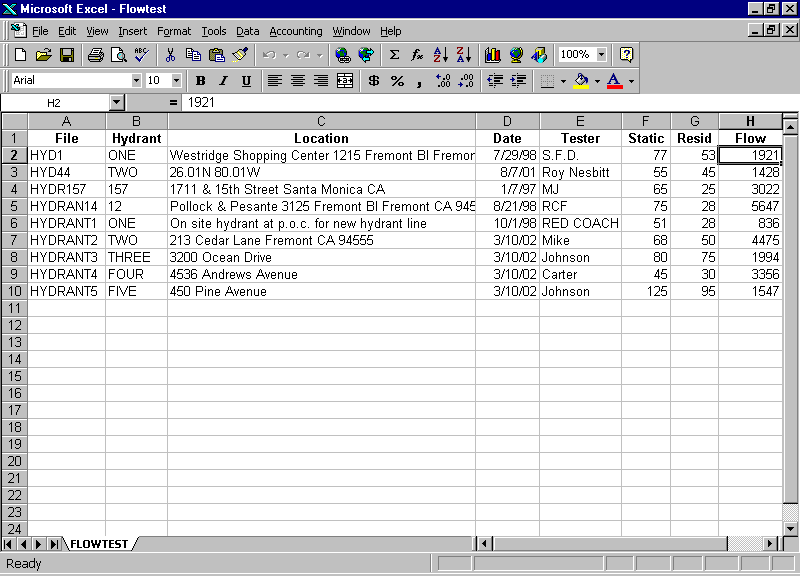

Paste Results to Microsoft Excel

Onscreen PDF Help

Specs on Hydrant Flow Test 5.0 for Windows

Microsoft Windows 2000/XP/VISTA.
Flow Test per NFPA 291 and AWWA M17.
Flow Test Data Entry for single or multiple hydrants.
Automatic flow calculation and display.
Unlimited number of flow test locations and outlets flowed.
Dynamic Graph responds immediately to changes.
Extrapolated Flow at 0 psi, 20 psi or any user defined pressure.
Summary SpreadSheet displays flow tests results.
NFPA Class AA, A, B & C hydrant flow color scheme.
Click Summary Headings to Sort SpreadSheet Data.
Report and Graph for each individual flow test.
Paste results to Excel and customize your output data.
User Manual including onscreen PDF Help.

[ Top ]

HYDRONICS : HYDRANT FLOW TEST 5.0 FOR WINDOWS - REPORT ---------------------------------------------------------------------------- CONTRACTOR : A.B.C. FIRE PROTECTION. (510) 442-4146. ADDRESS : 1213 Main Street, Fremont, CA. 94555. ---------------------------------------------------------------------------- File: HYDRAN14.HFT Test Hydrant: 12 Date: 3/22/2008 Time: 14:00 Location: Pollock & Pesante Elevation: 120 Tester: RCF Remarks: ---------------------------------------------------------------------------- HYDRANT GAGE DIAMETER COEFF PITOT FLOW ---------------------------------------------------------------------------- 1 2 2.25 in 0.88 36 Psi 797 Gpm 1 2 2.25 in 0.88 34 Psi 775 Gpm 2 3 2.5 in 0.95 30 Psi 970 Gpm 2 3 2.5 in 0.9 31 Psi 934 Gpm 3 4 1.75 in 0.97 38 Psi 546 Gpm 3 4 1.7 in 0.97 39 Psi 553 Gpm ---------------------------------------------------------------------------- Gage: 1 Static: 75 Psi Residual: 28 Psi Flow: 4575 Gpm ---------------------------------------------------------------------------- Copyright� 2008, Hydronics Engineering. (800) 845-9819.
