Sprinkler Hydraulic Calculation and Design Software.

20 YEARS OF FIRE SPRINKLER HYDRAULICS AND HYDRANT FLOW TEST SOFTWARE

(800-845-9819) DISCOUNT PRICE ON IMMEDIATE PURCHASE (800-845-9819)

SOFTWARE PACKAGE	SOFTWARE DESCRIPTION	PRICE
Commercial 5.7 for Windows	Commercial & Industrial fire, foam & spray sprinklers per NFPA 13,15,16,231-C. US/Metric/User Manual. Screens Reports Calc Specs Pipes Pump Tank Velocity PayPerCalc	$3000
*Residential 5.7 for Windows*	Residential fire sprinklers per NFPA 13D, 13R. US/User Manual. Screens Reports Calc Specs Pipes Pump Tank PayPerCalc	$3000
StandPipe 5.1 for Windows	StandPipes & Private Hydrants per NFPA 14. Marinas & Boatyards per NFPA 303. US/Metric/User Manual. Screens Reports Calc Specs Pipes PayPerCalc	*$1500*
Hydrant Flow Test for Windows	Hydrant Flow Test per NFPA 291 & AWWA M17 US/User Manual. Screens Reports Calcs Specs zip exe	$795
Commercial 4.4 for Windows	Commercial & Industrial fire sprinklers per NFPA 13,231-C. US/Metric/User Manual. Screens Reports Calc Specs Pipes zip exe	$1500
*Residential 4.4 for Windows*	Residential occupancies per NFPA 13D, 13R. US/User Manual. Screens Reports Calc Specs Pipes PayPerCalc	$1500
StandPipe 4.4 for Windows	StandPipes & Private Hydrants per NFPA 14. Marinas and Boatyards per NFPA 303. US/Metric/User Manual. Screens Reports Calc Specs Pipes PayPerCalc	*$1000*
Commercial 2.5 for DOS.	Commercial & Industrial occupancies per NFPA 13,231-C. US/Metric/User Manual. Screen Reports Specs Demo	$895
Residential 2.5 for DOS	Residential occupancies per NFPA 13D, 13R. US Units/User Manual. Screen Reports Specs	$895

Discount Price

The monthly discount price ( disc ) appears in the PRICE column directly below the ( retail ) price. This price only applies to an IMMEDIATE PURCHASE i.e. one completed on the same day that an offer is made to you by phone, email or fax. If you cannot complete the purchase on the same day contact us immediately for an extension. Discount prices expire at end of the week in which they are offered.

Commercial 5.7/Residential 5.7 - Booster Pump Dialog

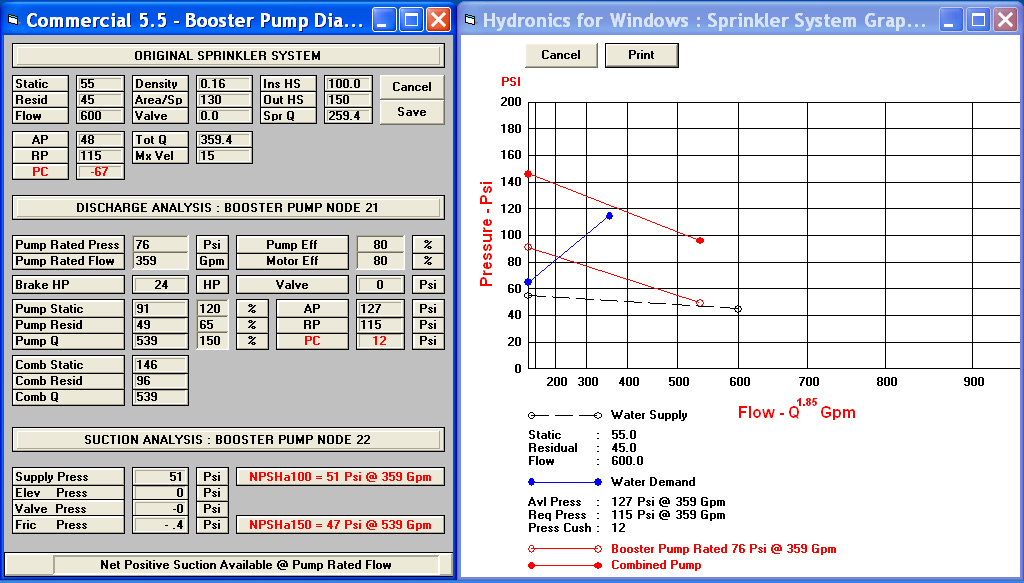

Commercial 5.7 for Windows features an Advanced Pump Selection Dialog that automatically calculates the pump rated pressure and pump rated flow. It plots the pump curve and keeps track of important fire pump discharge and suction parameters. The Net Positive Suction Pressure Available is calculated using elevation pressure losses(Hz), underground piping friction losses (Hf) and fixed losses between the source and pump suction.

Controls
HYDRONICS features impressive state-of-the-art custom controls that put you in charge of all the data entry and editing requirements for your Fire Sprinker Hydraulic calculations. It features pull down menus and scrollable spreadsheets linked to button bars for copy, paste, repeat, replace, insert and delete operations on multiple or single blocks of nodes and pipes. Typical values can be easily entered for multiple nodes and pipes. Click a button bar to repeat lines or columns in the spreadsheet. Clicking on the printer icon sends input or output data to the printer. Losses for meters and backflow devices are entered in psi. The system can be balanced for a minimum end-head flow or pressure. A single mouse click checks for errors, starts the calculation and displays the output. HYDRONICS uses finite element analysis in conjunction with the Newton-Raphson and LaGuerre algorithms for quickly and accurately balancing any fire sprinkler system configuration.

Utilities

Cover Sheet - easily created and automatically updated.

Report Submittal - your final report is printed using the neat and attractive NFPA-style Submittal Reports with the N^1.85graph and cover sheet.

Grid Estimator - quickly builds very large systems of cross mains and branch lines. The data created can be easily modified, saved and calculated from the editor.

Automatic Peaking - automatically peaks and selects the MRA for grid systems that are defined by the Grid Estimator or those manually entered using the full screen editor. It prints a Peaking Summary sheet.

Velocity Analyzer - calculates measures of fluid turbulence such as Moody's f and the Reynold's Number. The analyzer calculates and compares friction losses using both the Hazen-Williams and Darcy-Weisbach formulas to help you analyze and solve velocity problems. Settle velocity arguments with this powerful tool.

K-Factor Calculator - calculate adjusted k-factors for arm-overs and drops.

Tank Flow Utility - allows users to modify or add to the built-in pipe diameters, fitting symbols, symbol descriptors and equivalent lengths.

Pipe Table Editor - allows users to modify or add to the built-in pipe diameters, fitting symbols, symbol descriptors and equivalent lengths.

Velocity Analyzer

         The Velocity Analyzer Utility calculates the Reynolds Number, a key measure of fluid turbulence and non-laminar flow. The Reynolds Number is a function of pipe diameter(in), flow(gpm) and kinematic viscosity(Sq-Ft/sec). The Velocity Analyzer uses the Reynolds Number and measures of pipe roughness to calculate Moody's f and pipe friction loss(psi/ft) using the Darcy-Weisbach equation. The Velocity Analyzer also displays pipe friction loss using the Hazen-Williams equation.

Tank Flow

         The Tank Flow Utility is used for estimating the total pressure, velocity and flow from a water tank. The total pressure estimate takes into account vapor pressure, atmospheric pressure and water pressure. Vapor pressure is related to water temperature selected from a drop down list box. Atmospheric pressure varies with the value entered for elevation relative to sea level. Water pressure depends on the value entered for the tank water level relative to the spout centerline. The flow depends on the values entered for spout diameter and a coefficient for entry and exit losses. These parameters play an important role in matching tanks with fire pumps.

Pipe Table Editor

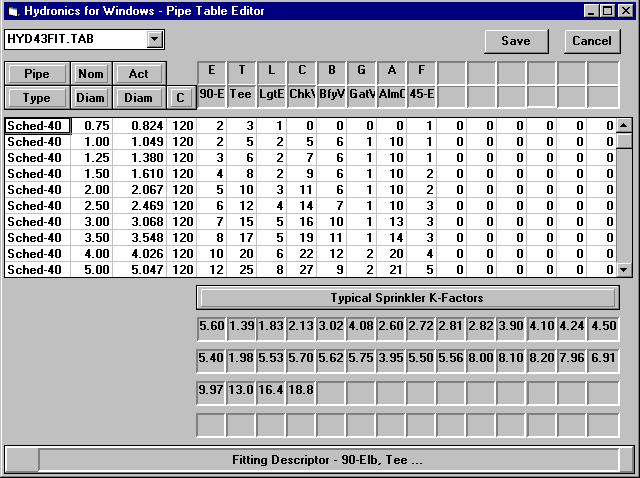

         A single key press or mouse click gives you access to 7 different kinds of sprinkler piping. There are over 60 built-in diameters for Steel, XL, Copper, Dynaflow, CPVC, PVC and Ductile Iron. Pipe sizes may be entered as nominal (1, 1.25,1.5, ...) or actual (1, 1.049, 1.380,...) diameters. There are 7 different fitting symbols. Multiple fittings are easily described e.g. 4E3T means four elbows and three tees. Fittings may also be entered as total equivalent lengths of pipe. Use the Pipe Table Editor and enter your own unique values for diameters, fitting symbols and fitting lengths.

Analysis
HYDRONICS provides you with immediate and comprehensive summaries of the hydraulic calculation output that can be viewed on your screen or sent to the printer. You can easily keep track of the friction loss, flow and velocity for every pipe in your sprinkler system.

SAMPLE SUBMITTAL REPORTS
Tree System Compound Grid StandPipe Calc Residential 1-Head Calc Residential 2-Head Calc Hydrant Flow Test
